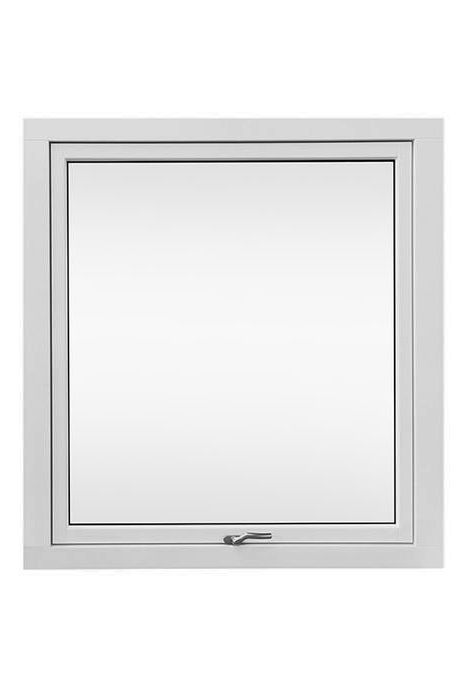

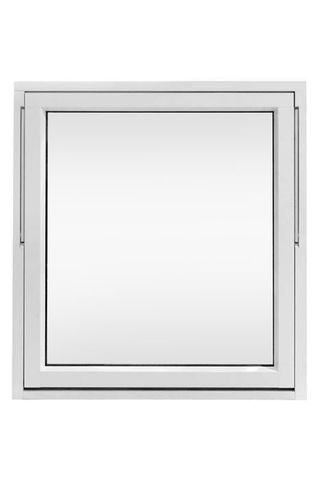

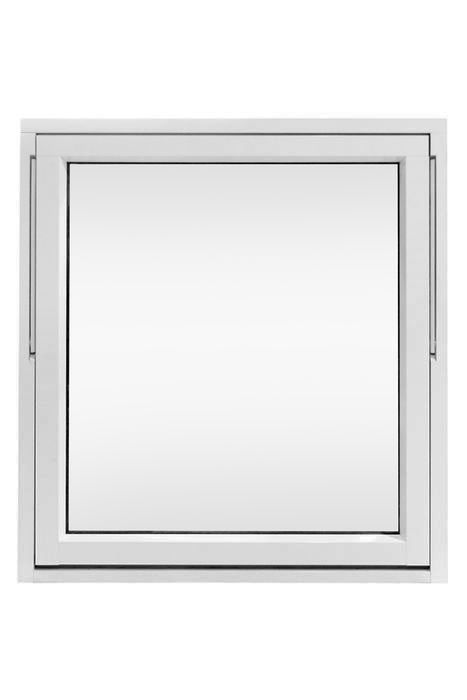

Top Swing Classic windows

Top Swing Classic windows

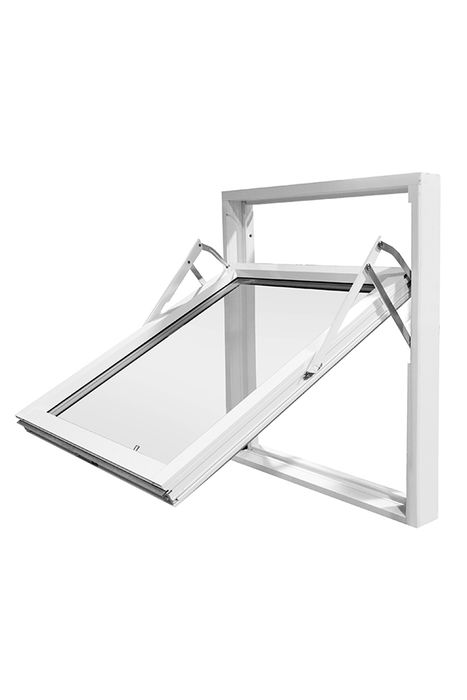

Spilka Classic hinges with their unique construction make it possible to turn the window fully inside, thus making the maintenance of the window very convenient and simple. The hinge construction is equipped with a regular stop, which limits the initial opening of the window to 100 mm and also operates in cases when the window is turned by 180°. The turning lock is very useful when there are small children present, thus limiting the possibilities of opening the window. The design of the window and hinge construction ensure the secure balance of the sash if you turn the window so that the external part turns inside.

The Top Swing Classic window has been tested in the SP Technical Research Institute of Sweden, and the wooden/aluminium window has obtained the certificate of „P” marking (www.sp.se).

These windows can be manufactured from wood or a combination of wood and aluminium where aluminium covers the outer part of the frame and sash.

Components

Manufacturing and delivery

Accessories and options

Glass

Raw material: Finger jointed pine, solid pine or oak

Frame: 95 or 105 x 57 mm

Sash: 76 x 65 mm

Glass: Double glazed (26 mm) or triple glazed (36 mm) with selective coating and argon gas

Aluminium drainage cover bar

Plastic glass beads with glass sealing rubber from outside

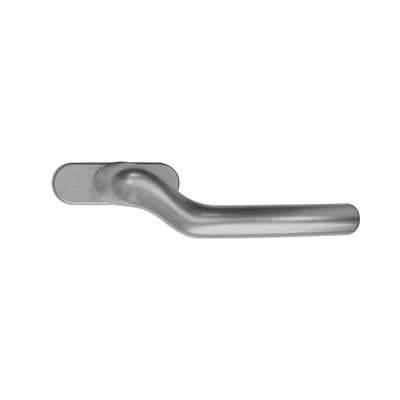

Handle: Hoppe

Hardware: Spilka

Finish: Remmers or Sigma varnishes or paint from RAL or NCS catalogue
